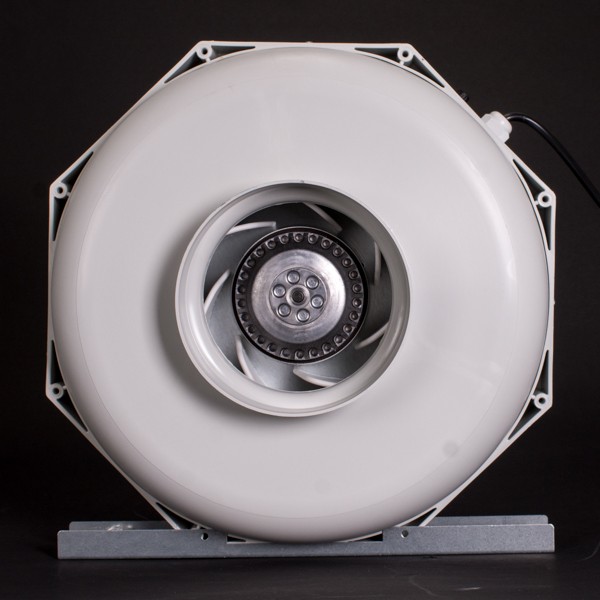

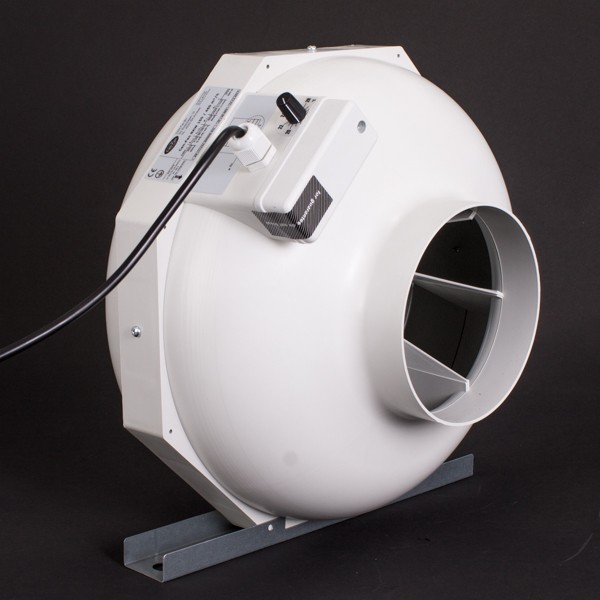

Can-Fan With Temperature Sensor

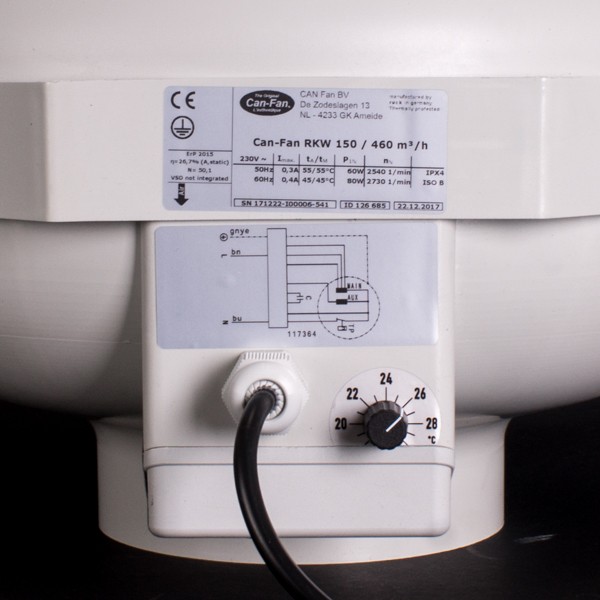

Thermostat control allows you to set a desired temperature on the fan unit. The fan speed will decrease or increase to maintain that temperature allowing the fan to run quieter when full power is not needed.

This fan has 3-speed levels controlled by the thermostat. The temperature is read from the air moving through the fan.

The sensor checks the temperature every 2 minutes. If it is below the set point by 1 degree it will reduce down one step until it reaches step 1 then it will remain. If the temperature is above the set point by 2 degrees it will move up to the next step until it reaches step 3 then it will remain.

Changes may take a few minutes to take effect, This is to spot the fan yoyoing when temperature sits on the change.

6″ / 150mm Flow Rate Max 460 m3/h

8″ / 200mm Flow Rate Max 830 m3/h
